El sistema de corte por láser de FAGOR ARRASATE combina una máquina de corte por láser de fibra con un sistema automático de alimentación de bobinas metálicas, dando como resultado una solución eficiente de corte por láser a partir de bobina.
La línea de corte por láser proporciona piezas acabadas cortadas por láser directamente desde una bobina, lo que resulta en una producción más flexible y eficiente. Ofrece muchas ventajas en comparación con los sistemas de alimentación de formatos en bruto gracias al uso de una bobina, como el ahorro de materia prima gracias a su mayor eficiencia de material, ritmos de trabajo constantes y un menor coste por pieza.
La tecnología de corte por láser también reduce el consumo de energía en comparación con otras alternativas, como las líneas de corte con prensa.
Algunas de las principales ventajas que se obtienen con el uso de la solución de corte por láser a partir de bobina son:
The new generation of Fagor Tandem Press Lines is designed to deliver maximum throughput with absolute reliability and 100% Fagor Arrasate automation.
We create solutions for OEMs and Tier 1 suppliers that need to produce more while minimizing headcount in production and maintenance teams — all with the lowest possible energy consumption.
Your challenges in high-speed stamping lines
Maximum stability and throughput in Tandem Press Lines → Fagor Arrasate Tandem Press Lines integrate presses, transfers and complete automation into a perfectly synchronized control architecture that is easy to operate and maintain. This enables stable operation at up to 20 strokes/min, maximizing line OEE even for complex parts.
Stable blank feeding at high throughput → Fagor Arrasate’s Front of Line fully automates blank feeding to the first press through advanced loading, separation, destacking, transfer, centering and final press-loading systems. This ensures precise, continuous and stable material entry, avoiding stops and misalignment from the beginning of the process.
Stable press-to-press transfer that increases line productivity → The press-to-press system electronically synchronizes part transfer with the cycle of each press. Through optimized motion trajectories and the correct phase offset between presses, it delivers smooth and precise part handling, ensuring stability and high stroke rates throughout the multi-press line.
End of line without affecting production pace → The automatic End-of-Line system extracts parts from the last press and deposits them in an orderly and ergonomic way onto the conveyor, facilitating inspection and stacking without compromising line throughput.

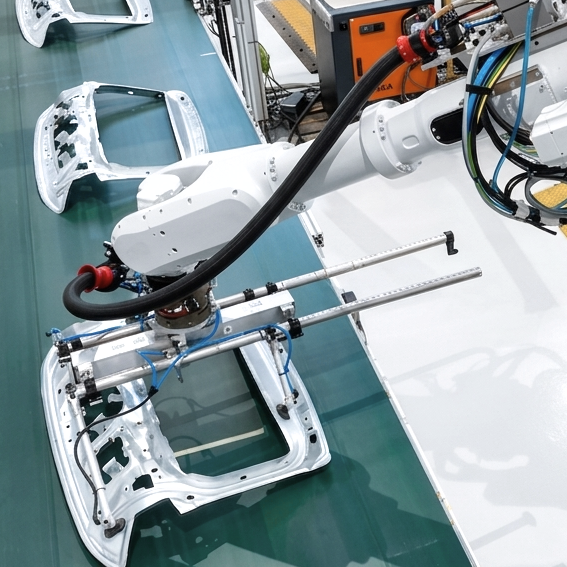

Efficient stacking and internal logistics of parts → The automatic stacking system with autoracking positions parts intelligently in racks or containers. It first verifies the rack or container position, condition and available space, and then places the parts inside it to keep the production flow moving.
Reduced cost of poor quality in high-speed production → In-line 2D/3D quality inspection detects defects during production and prevents non-conforming parts from advancing. This reduces logistics and rework costs and enables immediate root-cause correction.
Designed to lead in productivity, reliability and efficiency
Integrated automation and optimized motion deliver high, stable throughput.
Highly stable transfers with minimal intervention
Continuous operation with conventional or servo presses, reducing the carbon footprint.
From the loader to final stacking, all equipment is developed in-house for perfect integration.
Complete automation, from blank to palletized part
All line automation is developed, manufactured and integrated by Fagor Arrasate, ensuring homogeneous performance and perfect synchronization across the entire chain.
Simulation and optimization
SYNCRO is software designed by Fagor Arrasate. It uses a virtual model to calculate the optimal trajectories and speeds for the press and automation. It can simulate the entire cycle, check possible 2D interferences and can be linked to a 3D package for additional optimization.
S Y N C R O
Production optimization software
It is a key enabler for reaching 20 strokes/min safely on press lines.
Simulation
Optimization
Service and support for high-speed press lines
To ensure maximum availability, performance and operational continuity, Fagor Arrasate provides a service model designed to support the customer throughout the entire life cycle of the high-speed press line.
Our team combines local support in key markets, remote assistance and deep knowledge of the full line — from automation to presses — enabling rapid response to incidents, performance optimization and stable production even at maximum throughput.
Customer Story
A line ready for the challenges of today’s automotive industry
Reduced scrap and greater stability
Multi-part flexibility and fast changeovers
Full process traceability
Ready for decarbonization targets
24/7 operation with maximum stability
